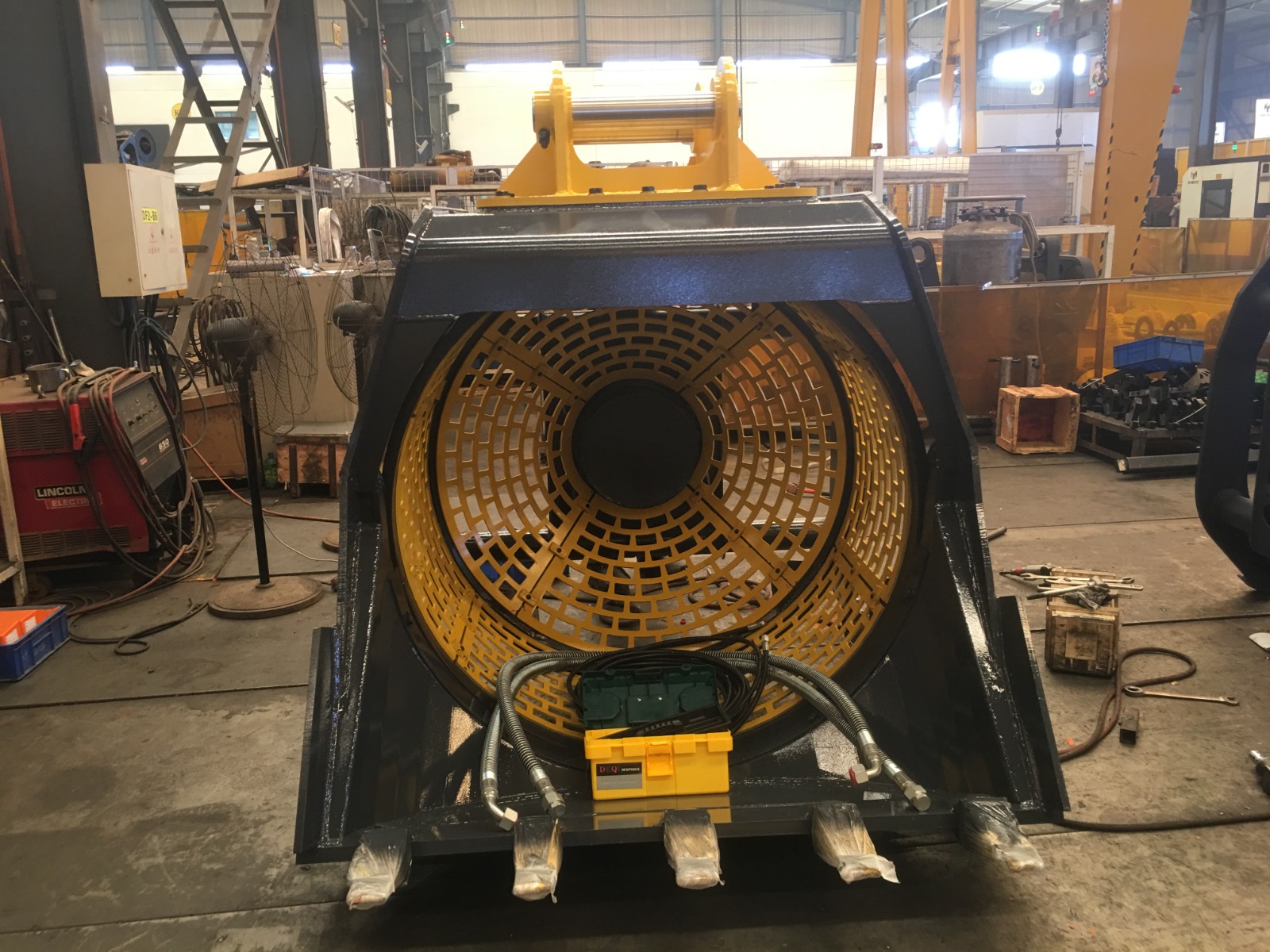

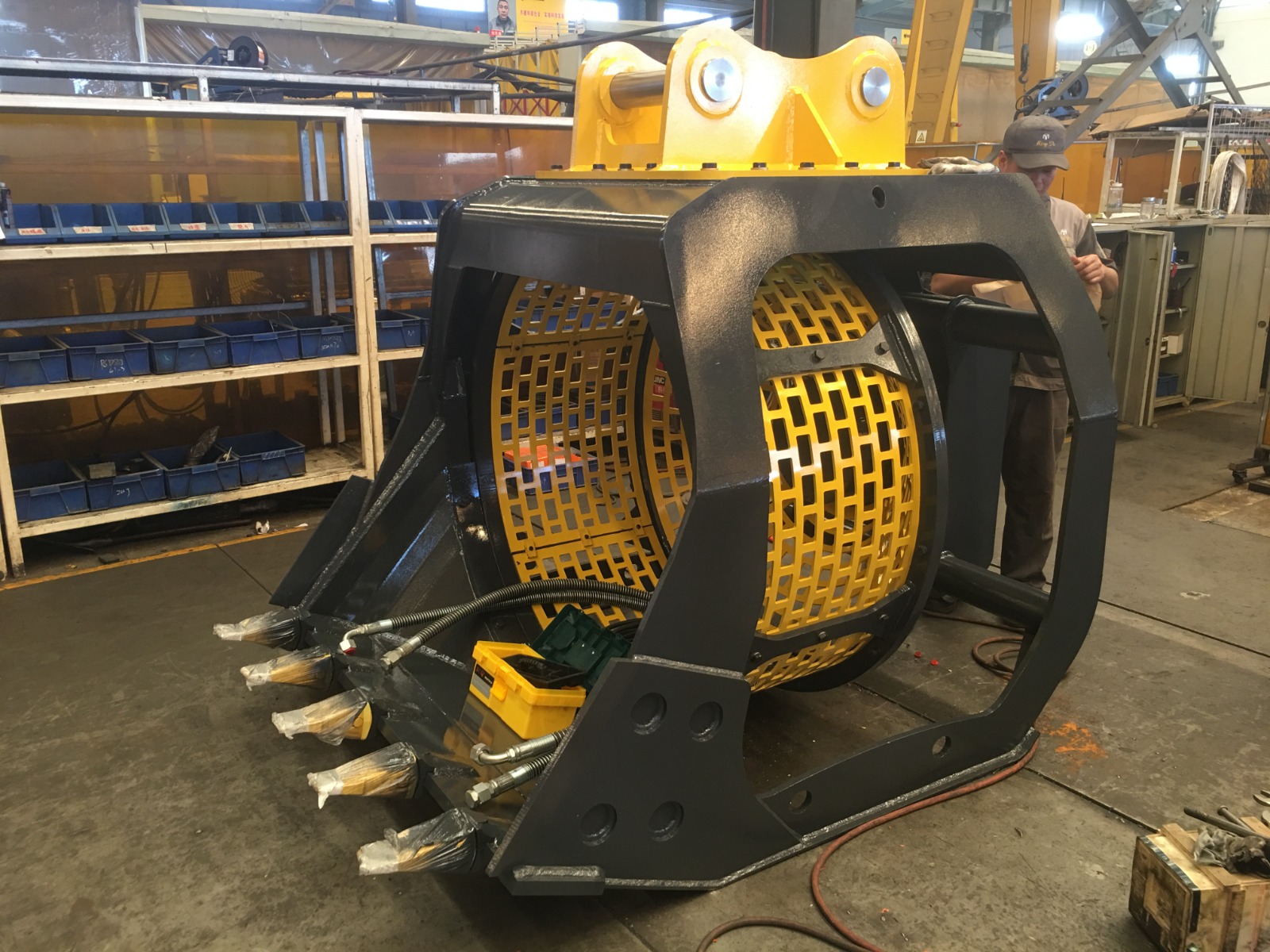

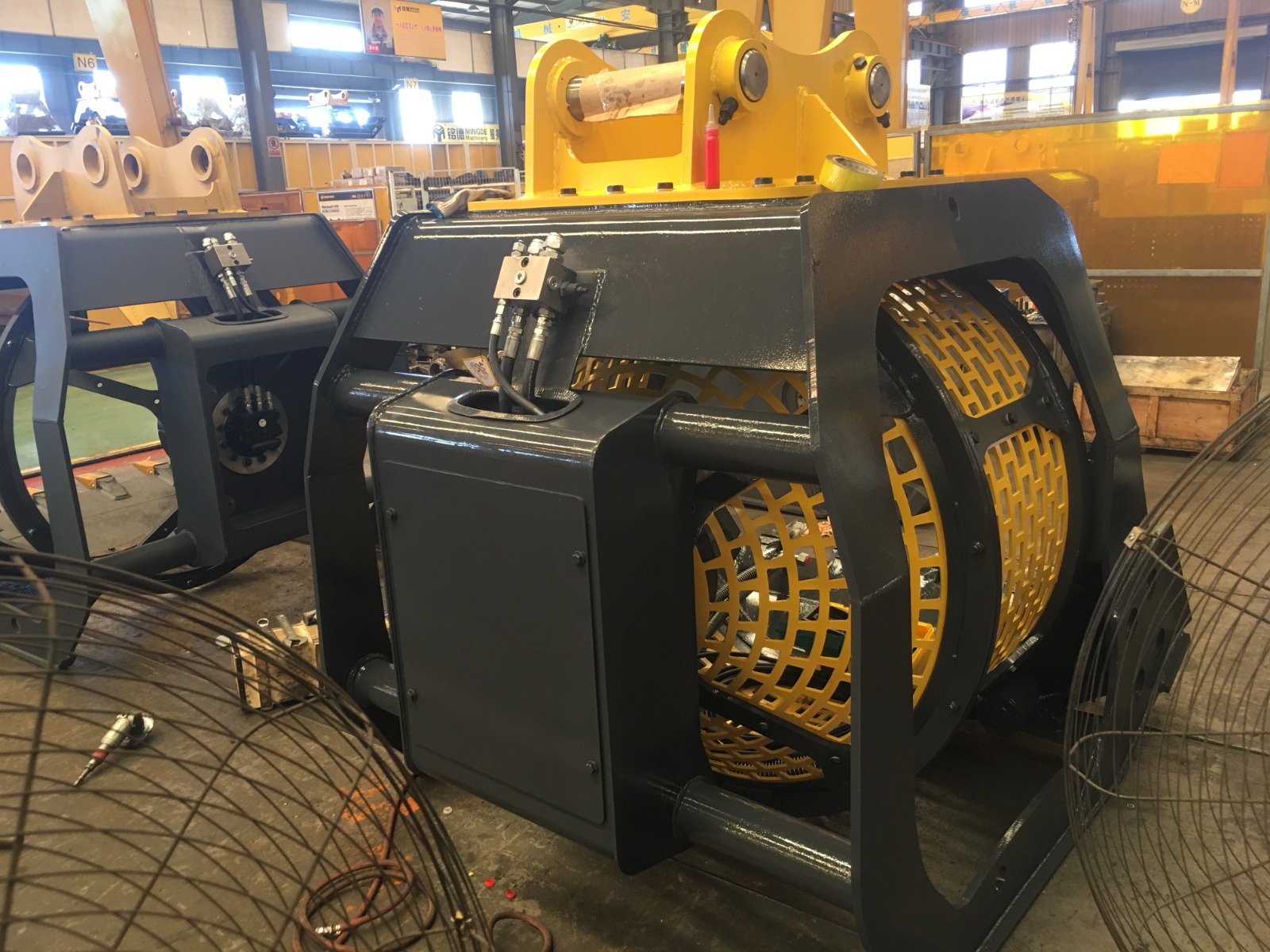

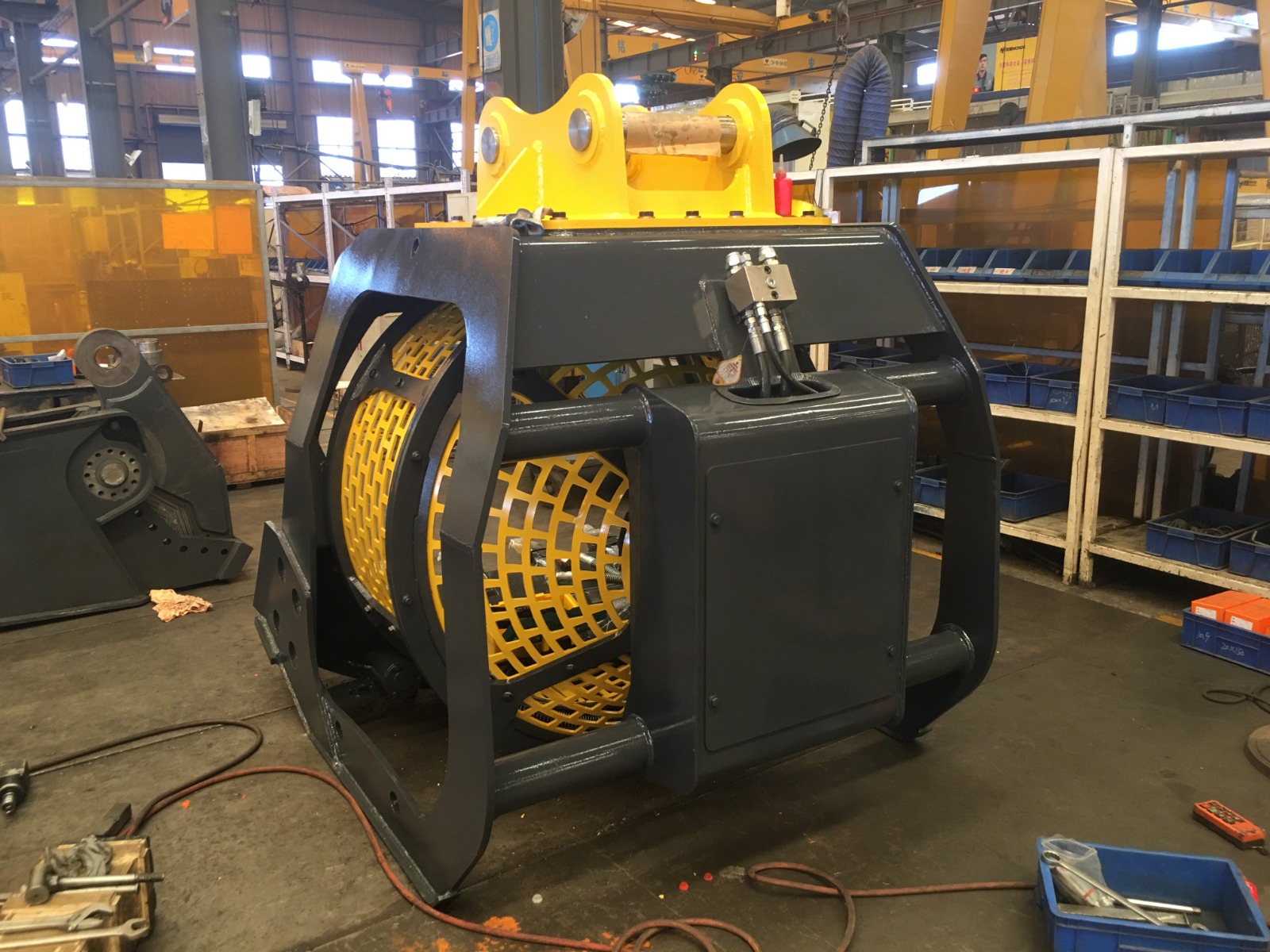

Rotary Screening Bucket is installed on an excavator or a loader to sort natural materials before and after crushing. The rotary screening bucket is mainly used for the screening of sand, gravel and soil material (such as dust). It suitable for mountain sand and river sand. It is suitable for washing operations, gravel screening and sand fields, mixing plants, construction sites, etc. Can easily cope with working conditions with high mud content

Features

• Rolling screening, the screen holes are not easy to be blocked, and if is suitable for various working environments.
• Split screen design, simple structure and convenient replacement.
• Screening drum can be rotated forward or reversed, and the screening efficiency is higher.
• Screen is made of imported wear-resistant material, and the size of the screen holes can be selected (generally 30-80mm for conventional mesh), and the screen screen suitable for special working conditions can also be customized according to the construction requirements.

Advantages

• Reliable structural design
• Easy maintenance
• Can work underwater
• Easy operation
• Effective with wet material
• Applicable to materials of different sizes

Excavator Attachment

Model	Units	S-100	S-140	S-200	S-300
Excavator weight	Tons	6-10	11-18	19-29	30-40
Net Weight	Kgs	460Kg	1400Kg	2000Kg	3200Kg
Working oil flow	L/min	60-80	100-120	140-160	200-220
	Gpm	16-21	26-32	37-42	53-58
Woring Pressure	Mpa	8-12	12-14	16-23	24-28
	Psi	1160-1750	1750-2030	2320-3335	3480-4061
	Bar	80-120	120-140	160-230	240-280
Bucket Volume	CBM	0.4	0.8	1.3	2.2
Screen Bucket Mesh Size (Recommend)	Cobble Stons(cm)	1-5	1-5	1-5	1-5
	Wash Sand (cm)	0.2-1	0.2-2	0.2-3	0.2-4
	For Mining(cm)	8-10	8-10	8-10	8-10
